Chevy-GMC 10-12 Inch Lift Kit 2001-2006 Tahoe Yukon Avalanche Suburban Escalade

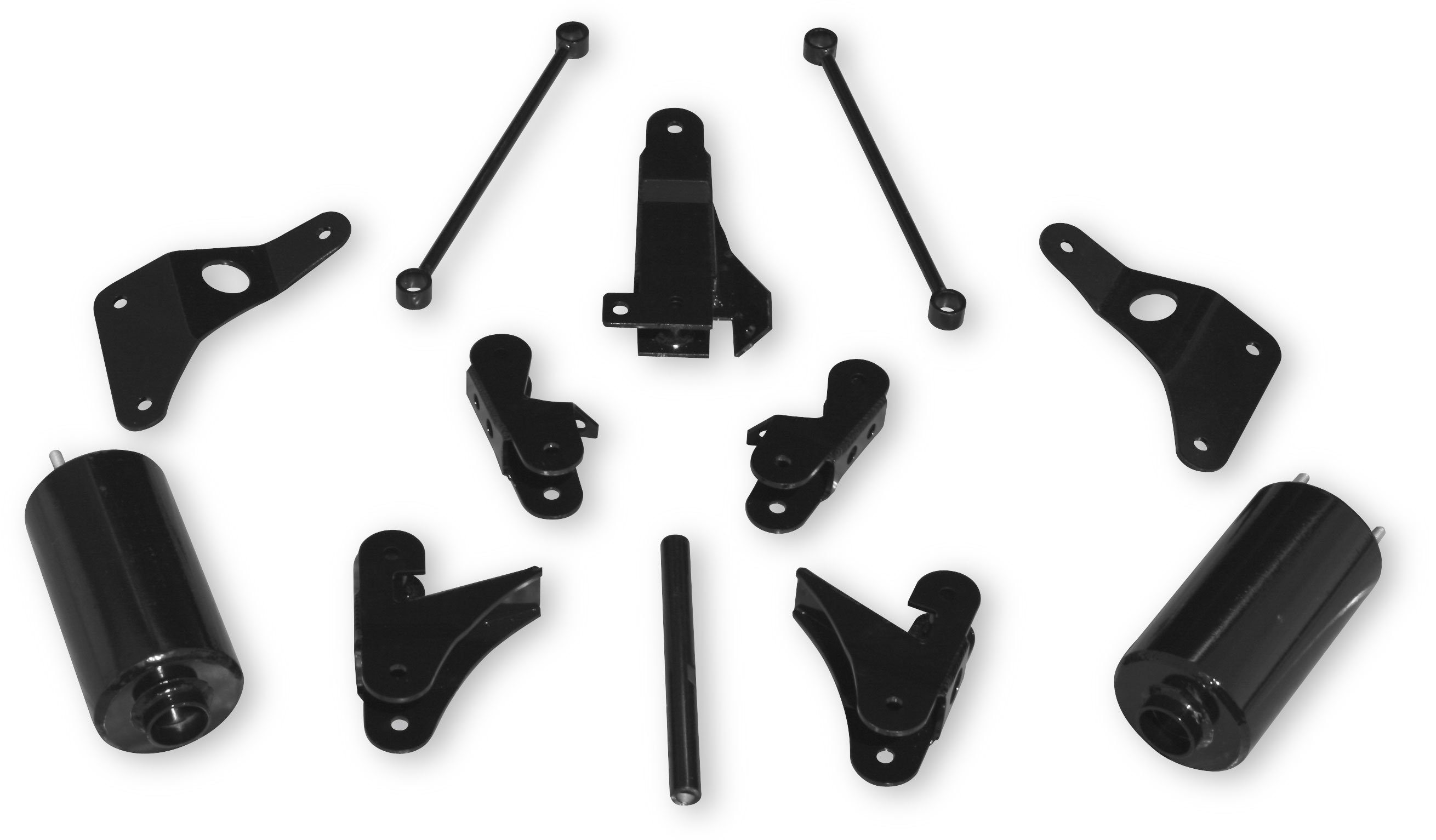

Kit Includes:

  1. One Piece Cage
  2. 6 Hole Differential Drop
  3. Differential Shackle Cross Over Mount
  4. Drag link
  5. Tie Rods
  6. D/S shock hoops
  7. D/S Upper Control Arms
  8. Upper Control Arm drops
  9. Impact Bars
  10. Torsion Drops
  11. Billet Steering Arms
  12. Steel Braided Brake Lines
  13. 7 Piece Heim Joint Steering
  14. Torsion Key
  15. Rear sway bars links
  16. Rear 4 link Drops
  17. Rear 4 link tie ins
  18. Rear Pan-hard Bracket
  19. Rear Pan-hard Brace
  20. Coil spacers

Kit Features:

Your Bulletproof Suspension kit will come powder coated glossy black, so its ready for install right out of the box. Other Color Opitions are available for additional cost. This 10″ – 12″ kit will allow you to run  37″ Tires with a  Recommended wheel back spacing of 4 1/2″. The Bulletproof Suspension  kit will also work with the Autoride / Autotrack systems, all well keeping the factory track width of the vehicle. And best of all, ALL Bulletproof Suspension manufactured parts are covered under a transferable life time warranty. (wearable items like bushings, ball joints, heim joints, shocks, ect not covered under this warranty.)

All Components are made from A36 Steel Plate 1/4″ thick heavy wall DOM, Seamless steel tubing. Bulletproof Suspension uses continuous seam welding with our gusseted truss constructed.

2001-2006 Chevy-GMC 10-12 Inch Lift Kit Tahoe Yukon Avalanche Suburban Escalade

The Chevy-GMC 10-12 Inch Lift Kit 2001-2006 features are one piece lift cage with 7 piece aircraft grade chromoly Heim joint steering, 4140 hardened steel bushings. The kit also includes front Differential drops for the 4wd models. Bulletproof took it one step further and included dual shock hoops and upper control arms standard in this 10″ – 12″ kit, with the option to upgrade to a Uniball Upper control arm.

This Bulletproof Suspension kit also drops the differential down the full amount to maintain the factory specification and eliminate any extreme angles. In addiion bump stops and droop stops are added to ensure that there will be no over extending, compressing or binding. Here at Bulletproof Suspension we know your truck or suv is important to you, so we designed our kits to be as direct bolt on as possible, with no need to cut or remove any factory parts that can’t be re-installed.

* 4wd models require 1 1/2″ extension for the front CV drive shaft

* Escalade and Denali models do require a after market CV drive shaft that can be purchased through Bulletproof Suspension. CV front shaft $595.00

Option 1 (Basic)

  • Bulletproof Kit  $4,250.00
  • F&R Standard Shocks (Set of 6)  $354.00
    Total  $4,604.00

Option 2 (Upgraded)

  • Bulletproof Kit  $4,250.00
  • F&R Bulletproof Remote Res Shocks  (Set of 6)  $1710.00
  • Billet Shocks clamps ($30X12)  $360.00
    Total  $6,320.00

Option 3 (Complete Upgrades)

  • Bulletproof Kit  $4,250.00
  • F&R Bulletproof Remote Res Shocks  (Set of 6)  $1710.00
  • Billet Shocks clamps ($30X12)  $360.00
  • Uniball A-Arms   $250.00
    Total  $6,550.00

Tire Size: 37”-38″ & Required wheel backspacing 4 ½”

**Shipping and any Taxes that may apply are not included in above prices.
